Chimney Placement on RF Conversion

Post by DDave » January 8th, 2019, 9:17 pm

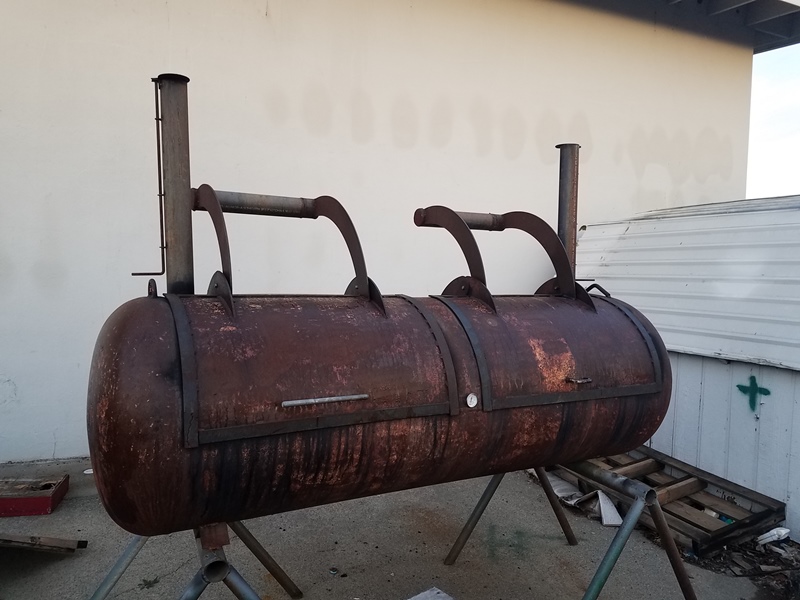

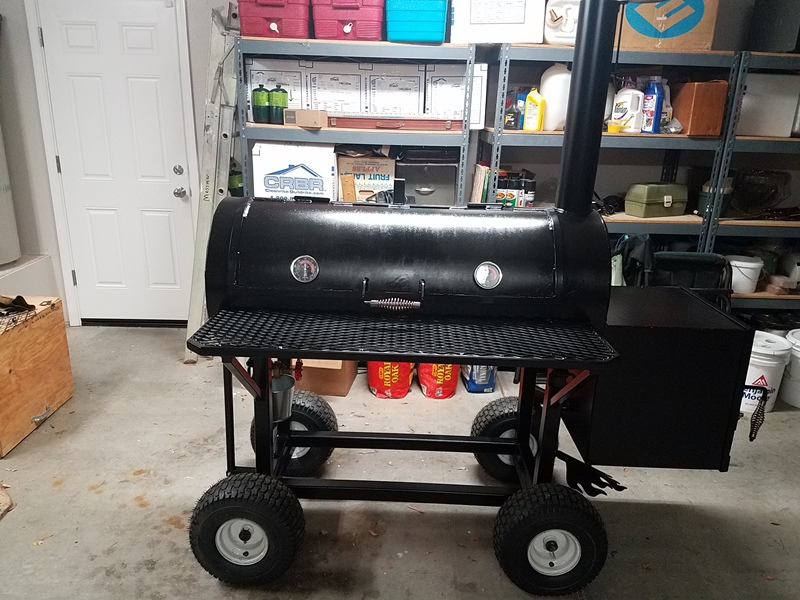

Now that this smoker is done

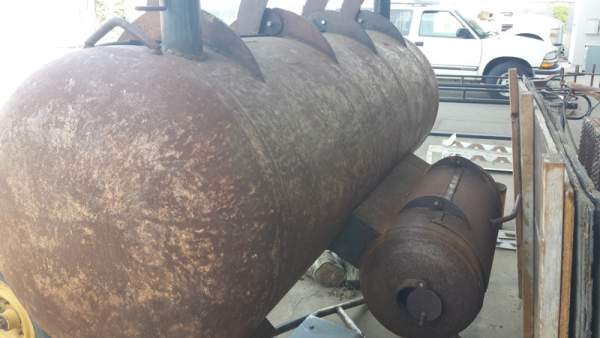

our next project at the high school is to convert this guy to a reverse flow.

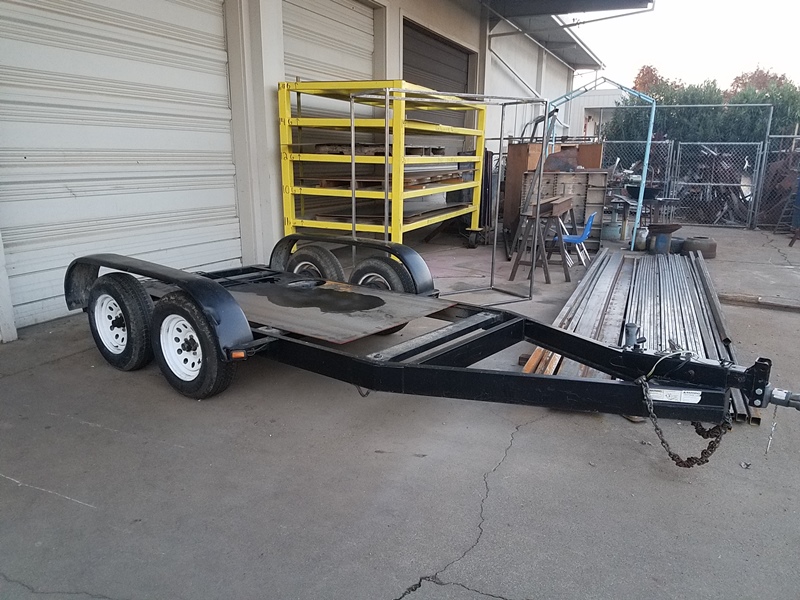

We will be ditching the old firebox and chimneys and after it is converted it will be put on this trailer.


I ran the numbers through the Pit Calculator and have come up with a chimney size of 6.5" in diameter by 34" high. But I have some questions about placement.

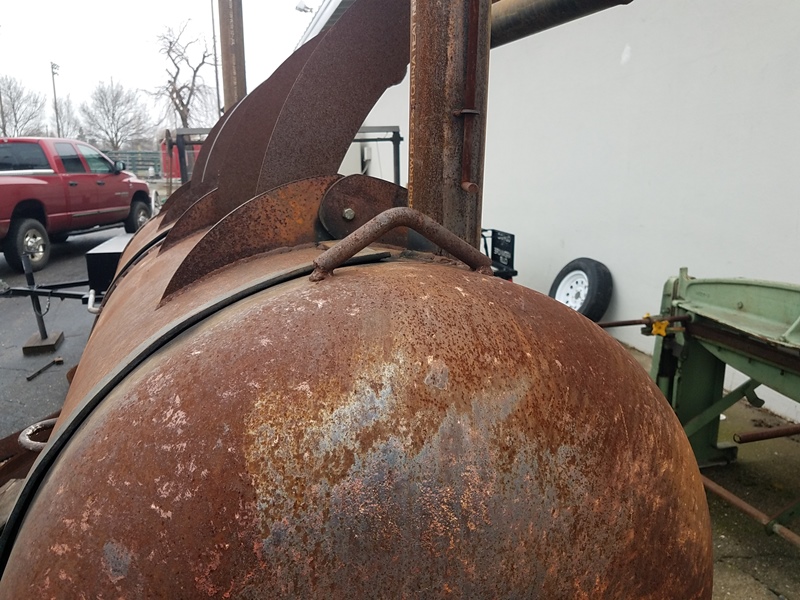

Since the doors have already been cut to the center it's not going to be easy to place the chimney in the center on top.

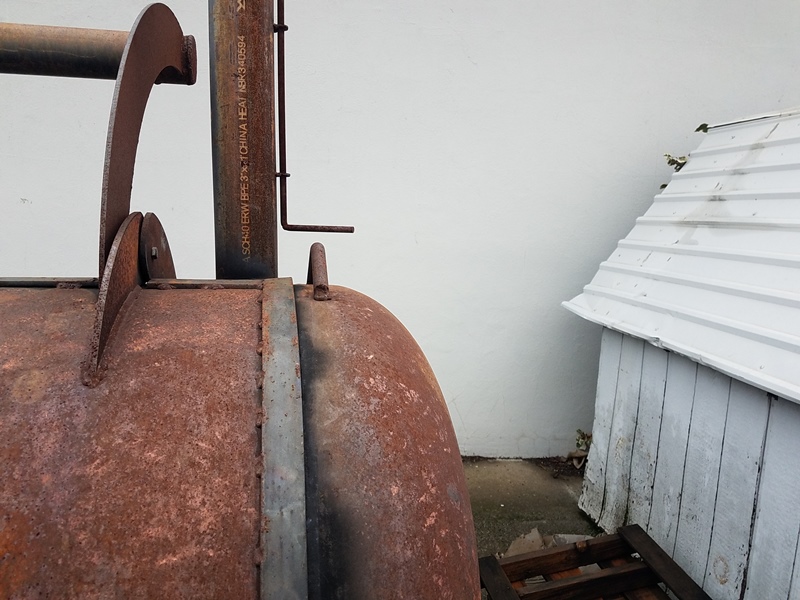

There's not much room on the end either.


So I figure our options are something like . . .

A:) Place it behind the cut of the door which will put it off center slightly and as close to the end as the "flat" part of the tank allows.

Or

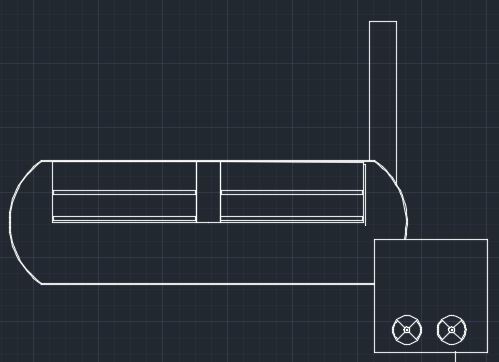

B:) Something like this.

Or

C:) Centered but having one side longer if necessary to accomodate the shape of the tank.

Which would you recommend?



jadstar
Just Got in trouble for buying tools
Just Got in trouble for buying tools
Posts: 37
Joined: February 21st, 2017, 6:58 pm

Re: Chimney Placement on RF Conversion

Post by jadstar » January 8th, 2019, 9:26 pm

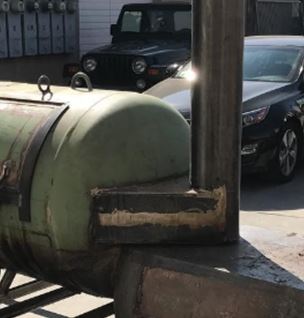

This stack location is like one of your examples and works very well. Stack is 8" and oversized for pit (free pipe). Image

Sent from my Moto Z (2) using Tapatalk




User avatar
towtruck
Expert
Expert
Posts: 451
Joined: August 4th, 2018, 4:50 pm

Re: Chimney Placement on RF Conversion

Post by towtruck » January 9th, 2019, 2:22 am

Either way will work. Looks like a fun project. I'll bet that little bitty fire box had a hard time keeping all that hot.



User avatar
Dirtytires
Expert
Expert
Posts: 2140
Joined: November 24th, 2015, 12:36 am
Title: It ain't broke...yet
BBQ Comp Team Name: Dont compete...cook for events once in a while
Location: Phoenix, Az

Re: Chimney Placement on RF Conversion

Post by Dirtytires » January 9th, 2019, 11:23 am

A or C....no real difference either way as they are both mounted high and will vent the top of the chamber. I tend to be pretty ocd so personally like the look of a centered stack better so would lean toward ‘C’ for just the appearance.
