Hybrid designed vertical insulated water smoker build

Post by Pitstopon66bbq » November 9th, 2015, 10:07 am

Hey fellas,

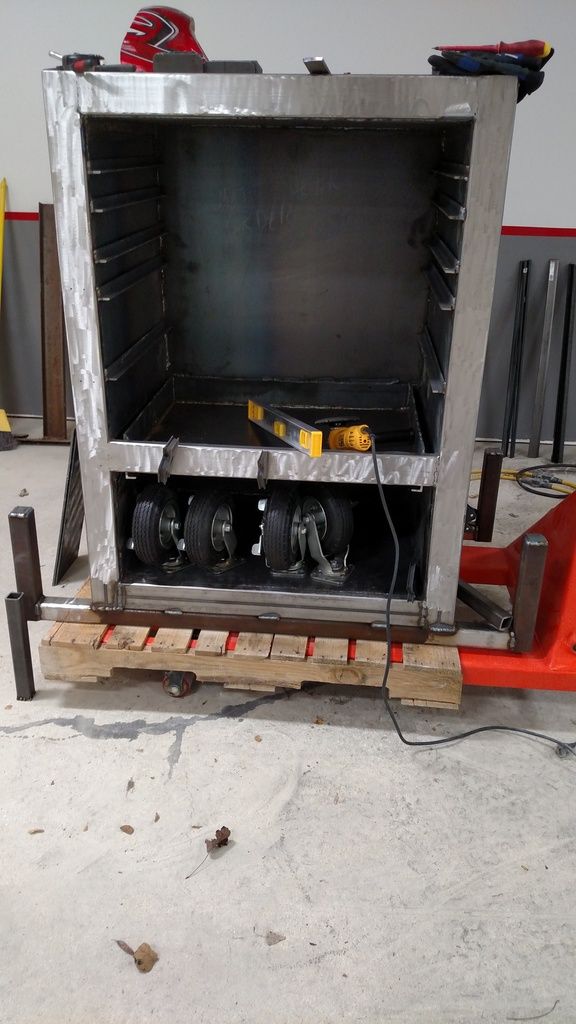

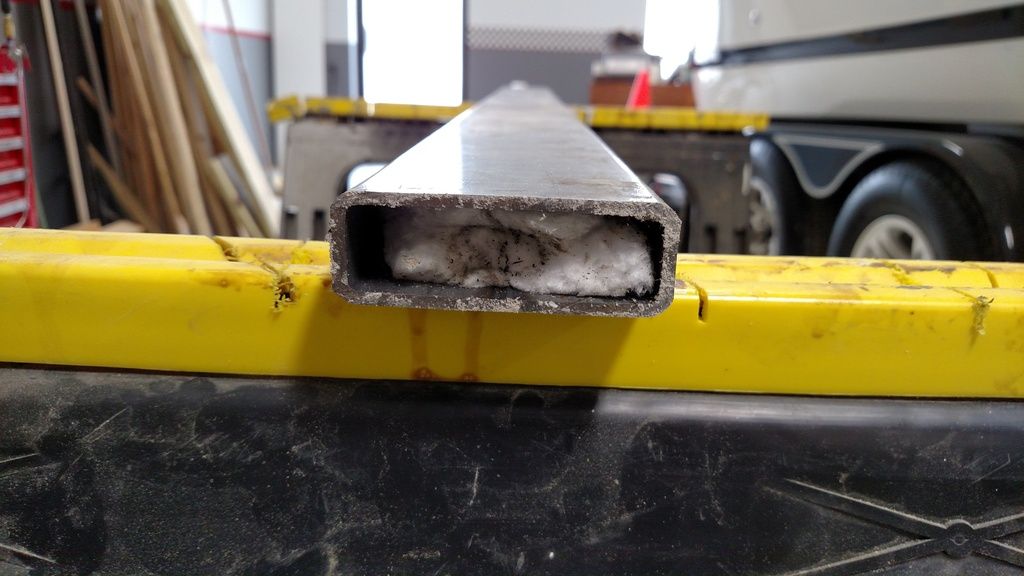

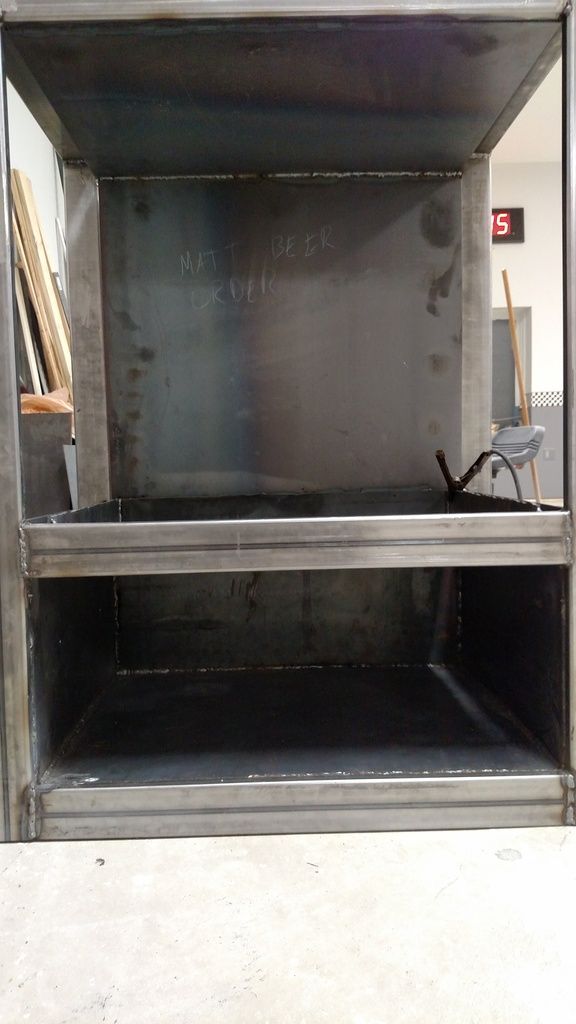

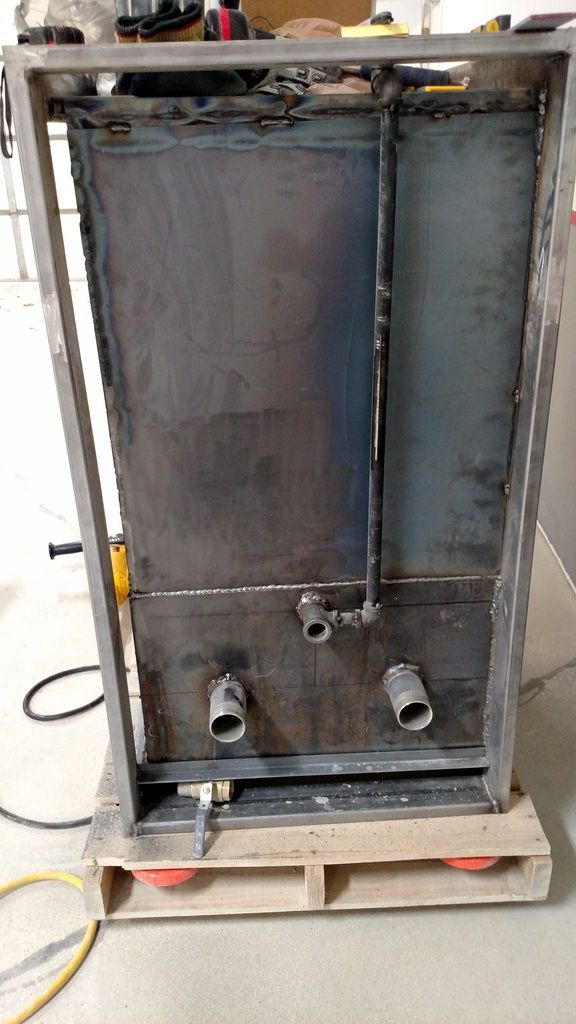

Thought I would finally post some pictures of my build I've been working on. I have built in design ideas from several different smokers on the market and some ideas of my own to make what I think is the best smoker for my needs. All of the firebox is made out of 1/4" plate including the door, the frame and cook chamber are 10 ga, the frame is fully insulated with 2000 degree kiln insulation, it has a water pan that can be filled without opening the doors, it has 8" swivel pneumatic casters on all 4 corners that can be leveled on uneven ground, the frame is being painted with 1500 degree primer and paint then it will be insulated with the 2000 kiln insulation. Racks will be 30" wide by 24" deep. Outside skin will be 16 ga and powdercoated.










User avatar
forty_creek
Expert
Expert
Posts: 1128
Joined: January 11th, 2015, 7:06 pm
Title: 40 Ways 2 Kansas
BBQ Comp Team Name: Not competing yet...
Location: Springhill,LA

Re: Hybrid designed vertical insulated water smoker build

Post by forty_creek » November 9th, 2015, 4:36 pm

Strong Work!


Drankin, Smokin and Dreamin

Sent from my iPhone using Tapatalk


DRANKIN, SMOKIN and DREAMIN

User avatar
Rodcrafter
Moderator
Moderator
Posts: 8456
Joined: July 21st, 2012, 5:46 pm
Title: Member
BBQ Comp Team Name: Not competing yet...
Location: Orlando, Florida

Re: Hybrid designed vertical insulated water smoker build

Post by Rodcrafter » November 9th, 2015, 5:16 pm

Nice work!


Making memories.


Current Smokers: Backyard RF Offset and Hybrid RF Offset trailer rig with Cowboy cooker and fish fryer, always room for more........

User avatar
Big T
Moderator
Moderator
Posts: 5642
Joined: September 1st, 2013, 2:40 pm
Title: Go Getter
BBQ Comp Team Name: Backyard Boys
Location: Lower Alabama

Re: Hybrid designed vertical insulated water smoker build

Post by Big T » November 9th, 2015, 11:07 pm

:LG:


Measure Twice.....Cut Three Times.

User avatar
Dirtytires
Expert
Expert
Posts: 2306
Joined: November 24th, 2015, 12:36 am
Title: It ain't broke...yet
BBQ Comp Team Name: Dont compete...cook for events once in a while
Location: Phoenix, Az

Re: Hybrid designed vertical insulated water smoker build

Post by Dirtytires » September 11th, 2016, 11:45 pm

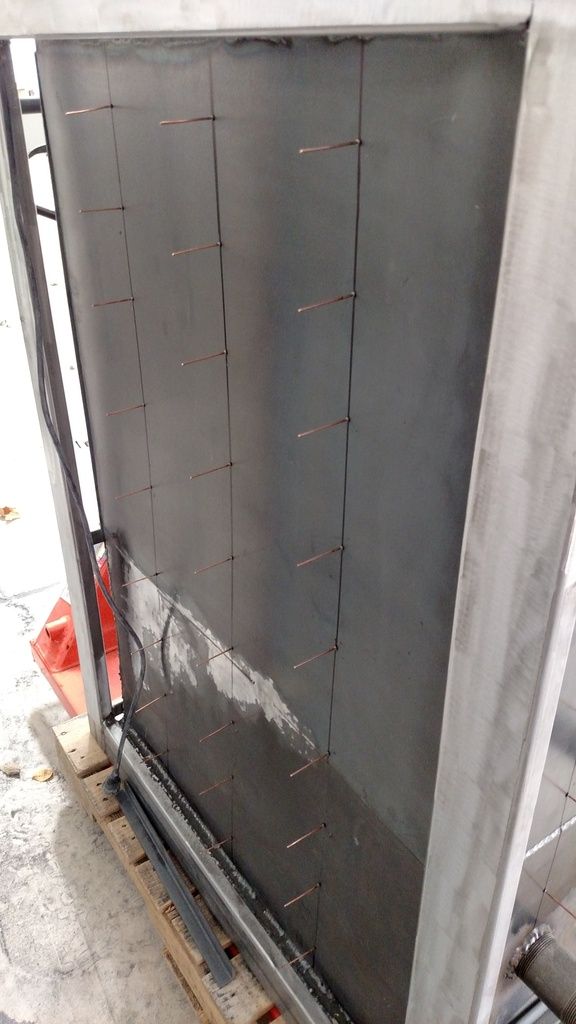

Nice to see someone else is using pins to hold up insulation sheets. Nice build.



User avatar
Squiggle
Expert
Expert
Posts: 2611
Joined: December 19th, 2015, 5:04 pm
Title: Reformed non-smoker!
BBQ Comp Team Name: Not competing yet...
Location: Mole Creek, Tasmania

Re: Hybrid designed vertical insulated water smoker build

Post by Squiggle » September 12th, 2016, 4:45 am

:LG: :beer:


Formerly known as "Hey you there in the bushes!"
